Flat - top fencing is a popular and practical fencing solution that combines functionality with aesthetic appeal. It is designed to provide a secure enclosure for various applications, whether it's for residential, commercial, or industrial use.
+86 150 0318 6738
Metal Fence
Flat - top fencing is a popular and practical fencing solution that combines functionality with aesthetic appeal. It is designed to provide a secure enclosure for various applications, whether it's for residential, commercial, or industrial use.
Product Features
Design and Structure
• Flat - topped Style: The most distinctive feature is its flat - topped design. Unlike some other fences with pointed or curved tops, the flat - topped fence provides a more straightforward and modern appearance. This design gives a clean - cut look that can easily blend with different architectural styles and landscapes, whether it's a rural farm or an urban property.
• Sturdy Frame: It is typically constructed with a strong framework. The posts and rails are usually made of durable materials such as metal (like steel or aluminum) or high - quality treated wood. The frame provides excellent stability and support, ensuring that the fence can withstand external forces such as wind, impacts from animals or objects, and the weight of any climbing plants if applicable.
Product Applications

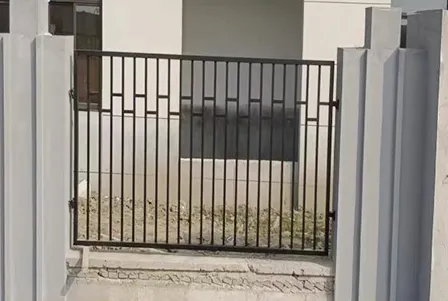

Garden Enclosures: Flat - topped fences are perfect for enclosing gardens. They clearly demarcate the boundary between the garden area and the rest of the property. This helps keep out unwanted animals like rabbits or deer that might damage plants. The flat - topped design also provides a convenient surface for placing flower pots or small garden ornaments.
Industrial Site Perimeter Fencing: Flat - topped fences are often used to mark the boundaries of industrial sites. They provide security and privacy, preventing unauthorized entry and protecting valuable equipment and materials stored inside. The flat - topped design can support security cameras or other surveillance devices.

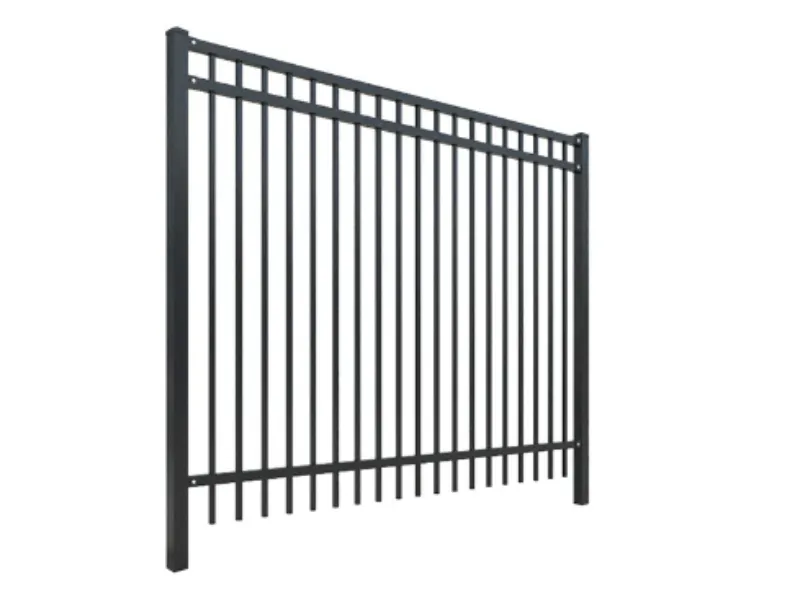

Steel Picket Fence
Material: Galvanized steel tube, Aluminum tube
Horizontal rail: 30*30mm, 40*40mm, etc.
Picket tube:15*15mm, 19*19mm, etc.
Height: 1.2m-3.0mm
Post: 60*60mm, 80*80mm,100*100mm, etc.
Accessories: post caps, brackets, nuts and bolts.
Surface treatment: Hot dipped galvanized, Powder coated
| Material | Galvanized steel tube | Aluminum tube | |
| Horizontal rail | 30*30mm | 40*40mm | |
| Picket tube | 15*15mm | 19*19mm | |
| Height | 1.2m-3.0mm | ||
| Width | 2.0-3.0m | ||
| Post | 60*60mm | 80*80mm | 100*100mm |
| Surface treatment | Hot dipped galvanized | Powder coated |
Packaging: pallets
Surface Treatment of Flat - Topped Fencing
1. Galvanization
• Galvanized treatment is a popular choice for flat - topped fencing. The process involves coating the metal surface of the fencing with a layer of zinc. This is usually done through hot - dip galvanizing. In this method, the fence is immersed in a bath of molten zinc. The zinc reacts with the metal of the fence to form a series of zinc - iron alloy layers and a pure zinc outer layer. This zinc coating provides excellent corrosion resistance. It acts as a sacrificial layer. When the fence is exposed to the elements such as rain, humidity, and chemicals in the air, the zinc corrodes first, protecting the underlying metal from rust and other forms of degradation. As a result, the life span of the flat - topped fencing can be significantly extended.
2. Powder Coating
• Powder coating is another effective surface treatment for flat - topped fencing. In this process, a dry powder (usually a mixture of resins, pigments, and other additives) is electrostatically sprayed onto the clean and pre - treated surface of the fencing. The powder particles are attracted to the electrically charged surface of the fence. Then, the coated fence is cured in an oven at a specific temperature. During curing, the powder melts and flows to form a smooth, hard, and durable coating. Powder - coated flat - topped fencing offers a wide range of color options. It can provide good resistance to UV radiation, chemicals, and abrasion, maintaining the appearance and integrity of the fence for a long time.
3. Vinyl Coating
• Vinyl coating involves applying a layer of polyvinyl chloride (PVC) to the surface of the flat - topped fencing. The vinyl coating can be applied through a variety of methods such as extrusion or dipping. The PVC layer provides good protection against corrosion, as well as a degree of flexibility to the fence. It also gives the fence a more aesthetically pleasing look. The vinyl - coated fencing is often used in applications where a more decorative appearance is
Customization Process of Wire Mesh
Requirement communication
You communicate your specific requirements for the wire mesh, including mesh size, material, dimensions, and any special features.
01Design confirmation
The manufacturer confirms the design based on your requirements and may provide suggestions or modifications if necessary.
02Quotation
A quotation is provided based on the confirmed design and specifications.
03Order placement
You place the order after agreeing to the quotation.
04Production
The manufacturer begins the production process according to the agreed design.
05Quality inspection
The wire mesh is inspected for quality and compliance with the requirements.
06Delivery
The customized wire mesh is delivered to you.
07Related Products
Zelian manufactures and supplies a wide variety of fence fences, including 3D fences, livestock fences, temporary road barriers, double-sided wire barriers and more.
